Aibotix X6


The Aibot X6 defines the standard of professional UAV for surveying and mapping

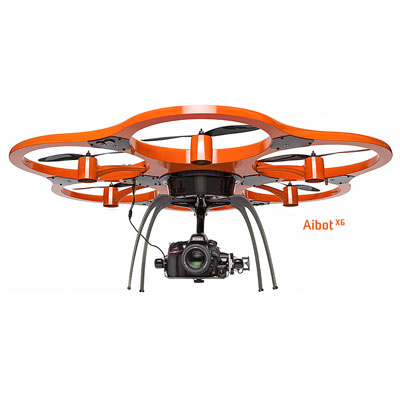

The Aibot X6 is an autonomously flying hexacopter, specifically designed for demanding tasks in surveying, industrial inspection, agriculture and forestry. Equipped with a high level of artificial intelligence, this UAV reaches any target and can independently create high resolution images and videos. An unmatched feature of the Aibot X6 offers the possibility to adapt varying kinds of sensors such as hyper- and multi-spectral sensors, infrared and thermal sensors, and sensors for other industry-specific missions. A new spin on photogrammetry Surveying of the future is not fixed and static, but dynamic and flexible. With the data captured by the Aibot X6 commercial UAV and the software solutions of Aibotix and Hexagon, you can generate orthophotos, 3D models and high-density point clouds with great accuracy. The flight planning software Aibotix AiProFlight makes it simple to obtain all the parameters essential for proficient photogrammetry.

Aibotix X6
Aibotix X6

Aibotix X6v2 RTK Features

Length/ Width/ Heigth 1.05 x 1.05 x 0.45 m
Housing CFRP (Carbon Fiber Reinforced Polymer)
Take-off weight 4.6 - 6.6 kg
Max. payload 2.0 kg
Max. speed 40 km/h (25 mph)
Climb rate 8 m/s
Flight height Up to 500m (1,640 ft.) over ground, up to 3,000 m (9,843 ft.) above sea level start point
RC range Up to 1,000 m
Flight time Up to 20 min
Operating temperature -20° C to 40° C (-4° F to 104° F)
GPC-receiver Yes
Standard sensors Sony ILCE-6000, Sony ILCE-7R, Workswell WIRIS 640, Parrot Sequoia, Headwall Nano-Hyperspec
Control Remore control, automatic waypoint flight
Software Aibotix AiProFlight
Software Aibotix AiProFlight
Service Service team, hotline, pilot training
Sets + Equipment On-top camera mounting, digital live video Aibotix Ai DLVP, standard sensors, RTK Aibot HP GNSS 2

Request Aibotix X6v2 detailed informations, meetings & demos, quotes
